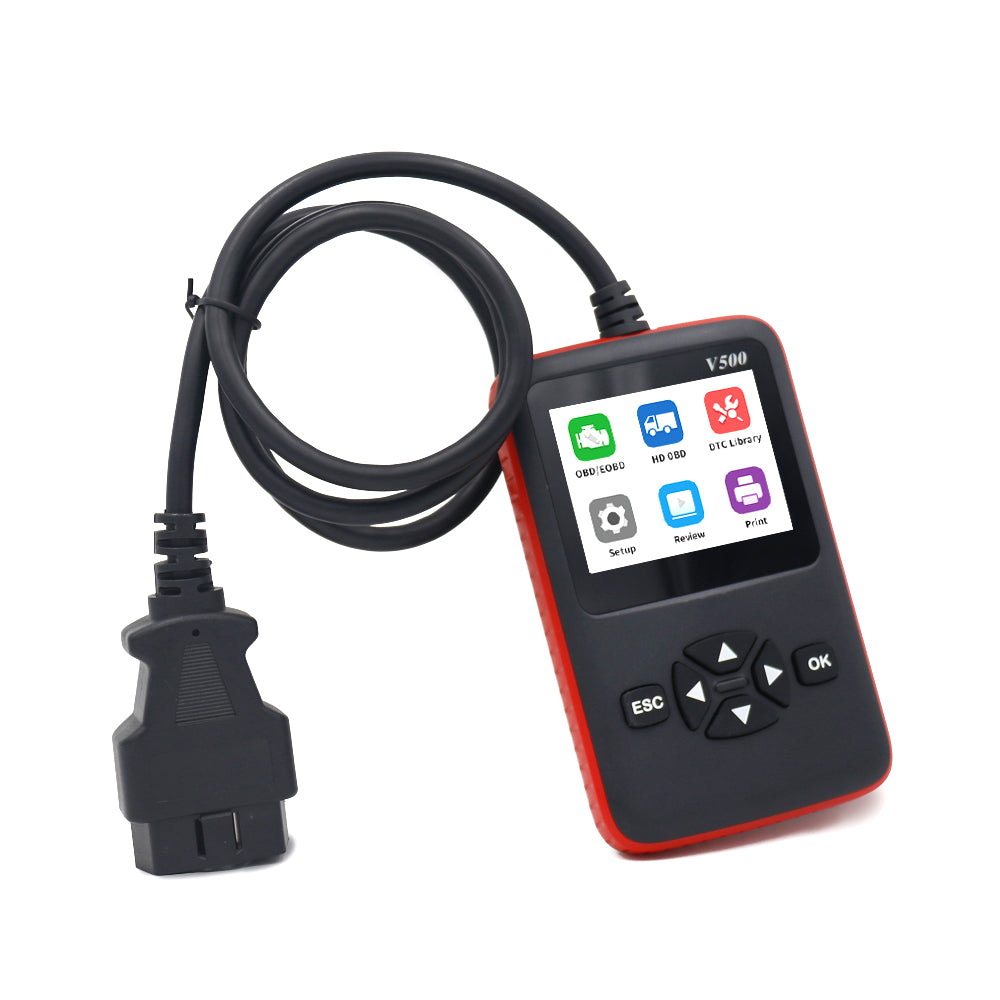

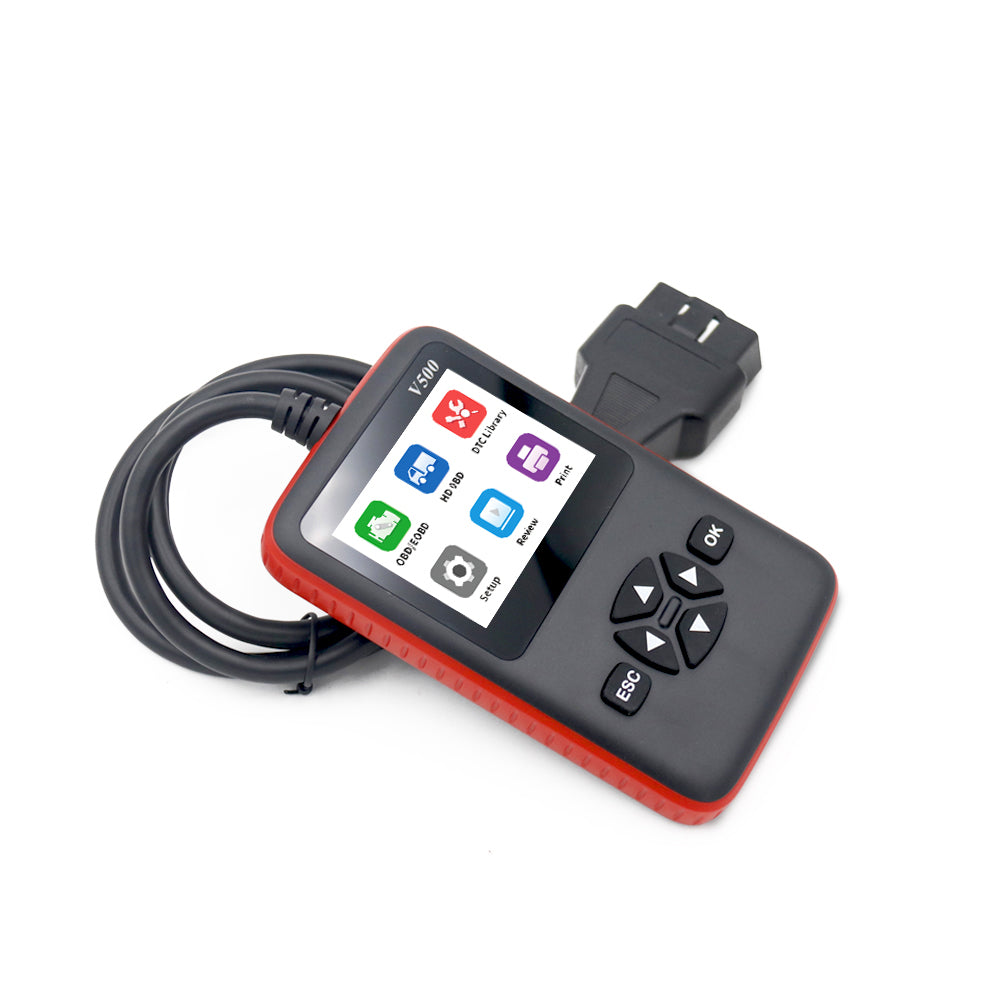

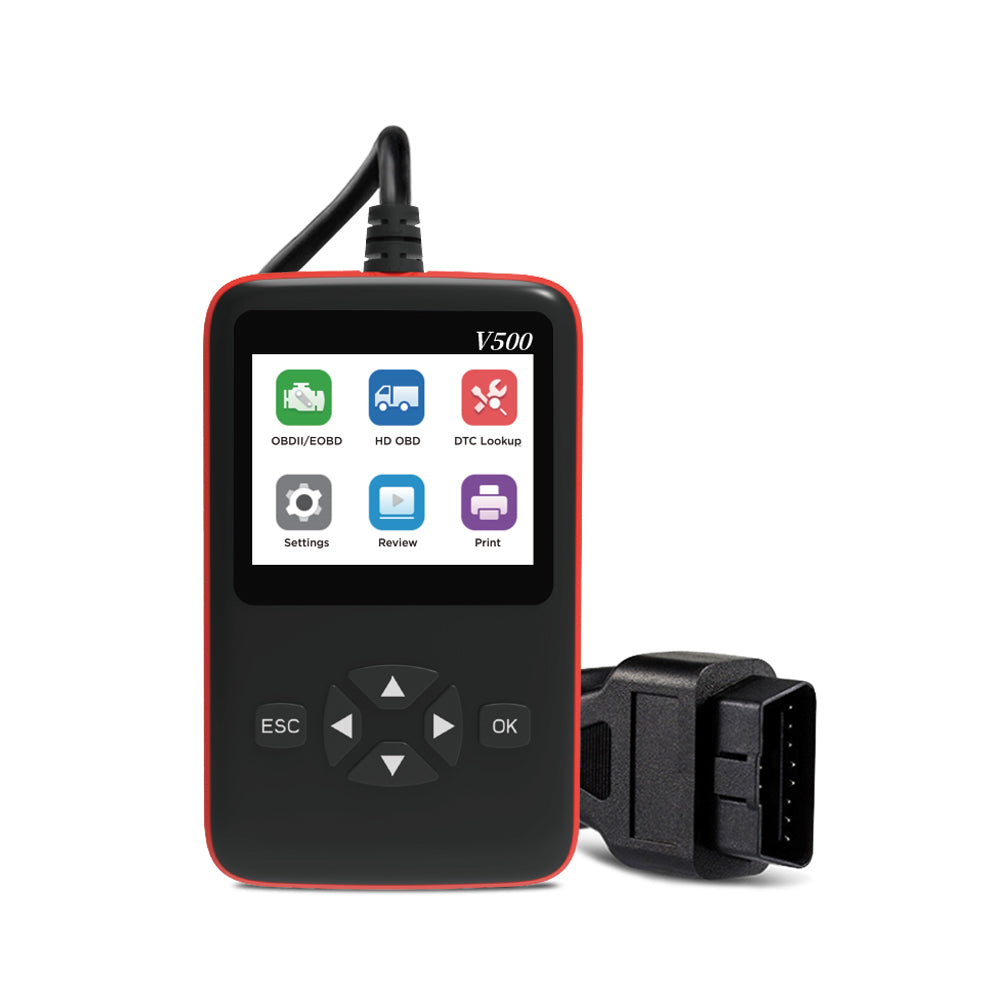

Advanced Commercial Vehicle OBD II Diagnostic Scanner

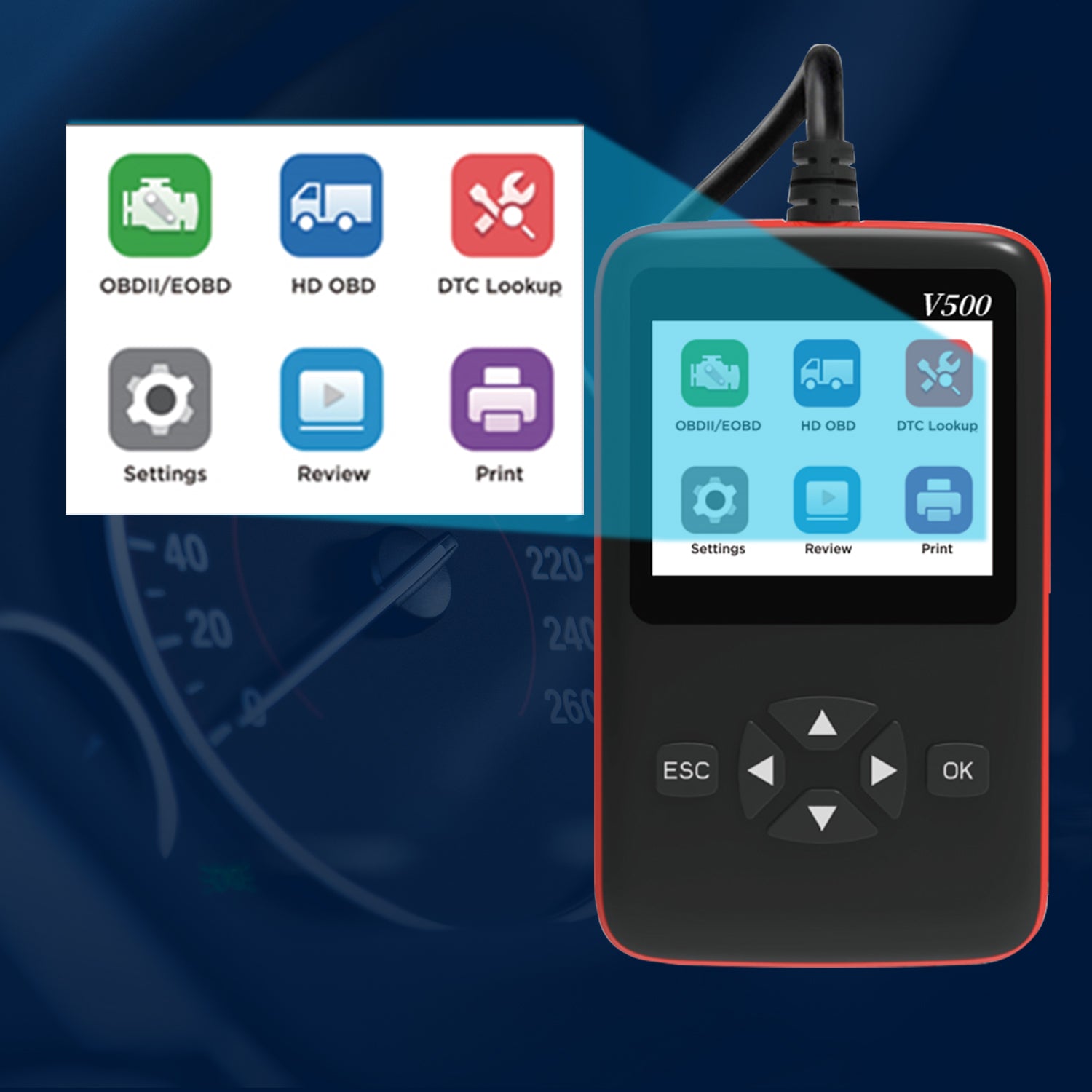

A 2-in-1 standalone diagnostic tool for both standard passenger vehicles and diesel trucks/commercial vehicles — one device covers both. Supports standard OBD II protocols for cars plus SAE J1939 and J1708 for heavy commercial vehicles, all via a built-in 2.8-inch colour screen with no smartphone or app required.

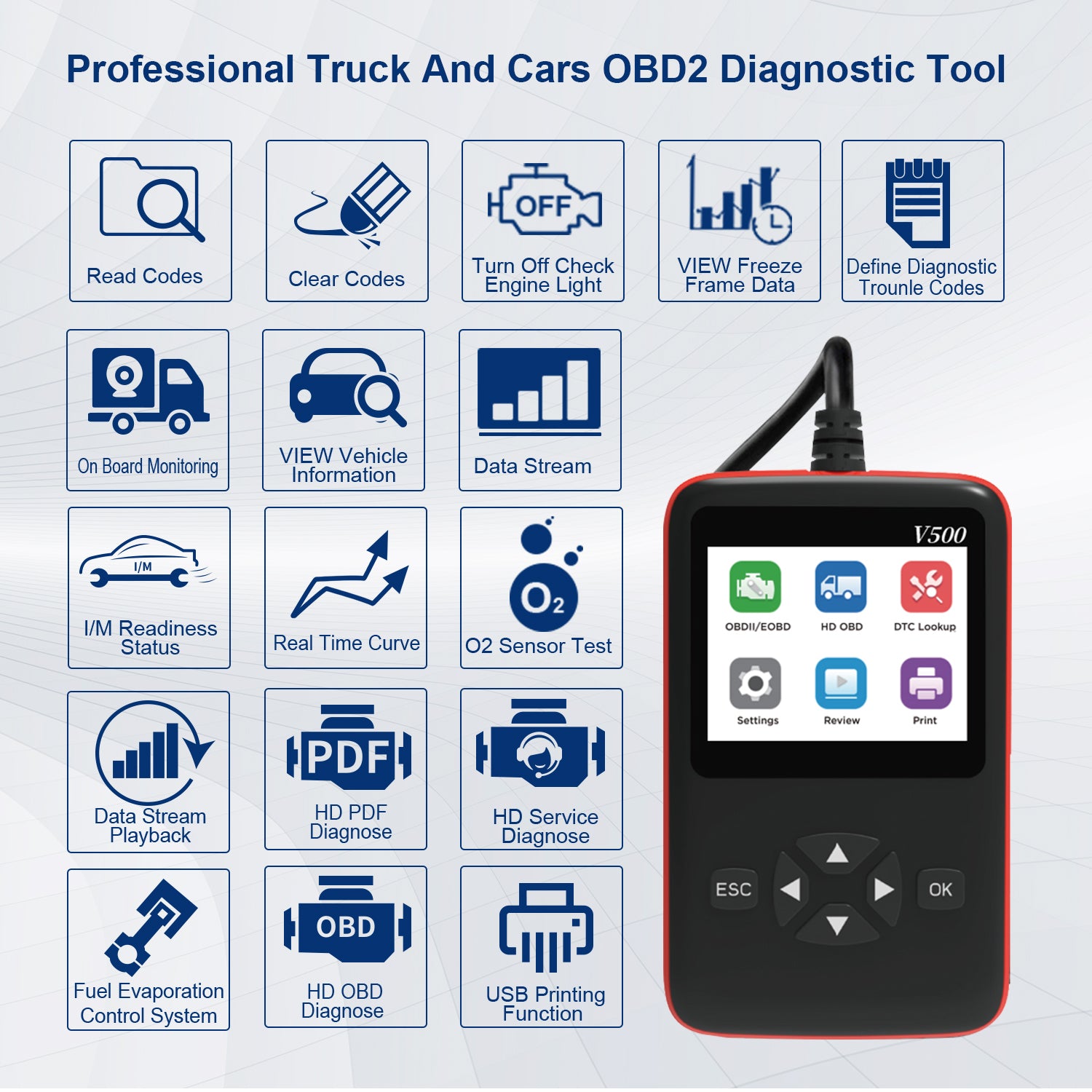

For Cars and Light Vehicles (OBD II)

Read and clear engine fault codes — generic and manufacturer-specific
Reset the Check Engine Light
Real-time live data stream and data stream playback
Freeze frame data
I/M readiness and emissions status check
Oxygen sensor test
On-board monitor test (Mode 6)
EVAP system test (Mode 8)
Vehicle information retrieval (VIN)
Built-in library of 40,000+ fault code definitions
USB printing of fault codes, live data, and freeze frame reports

For Diesel Trucks and Commercial Vehicles

Read and clear truck fault codes
Live data stream for supported truck systems

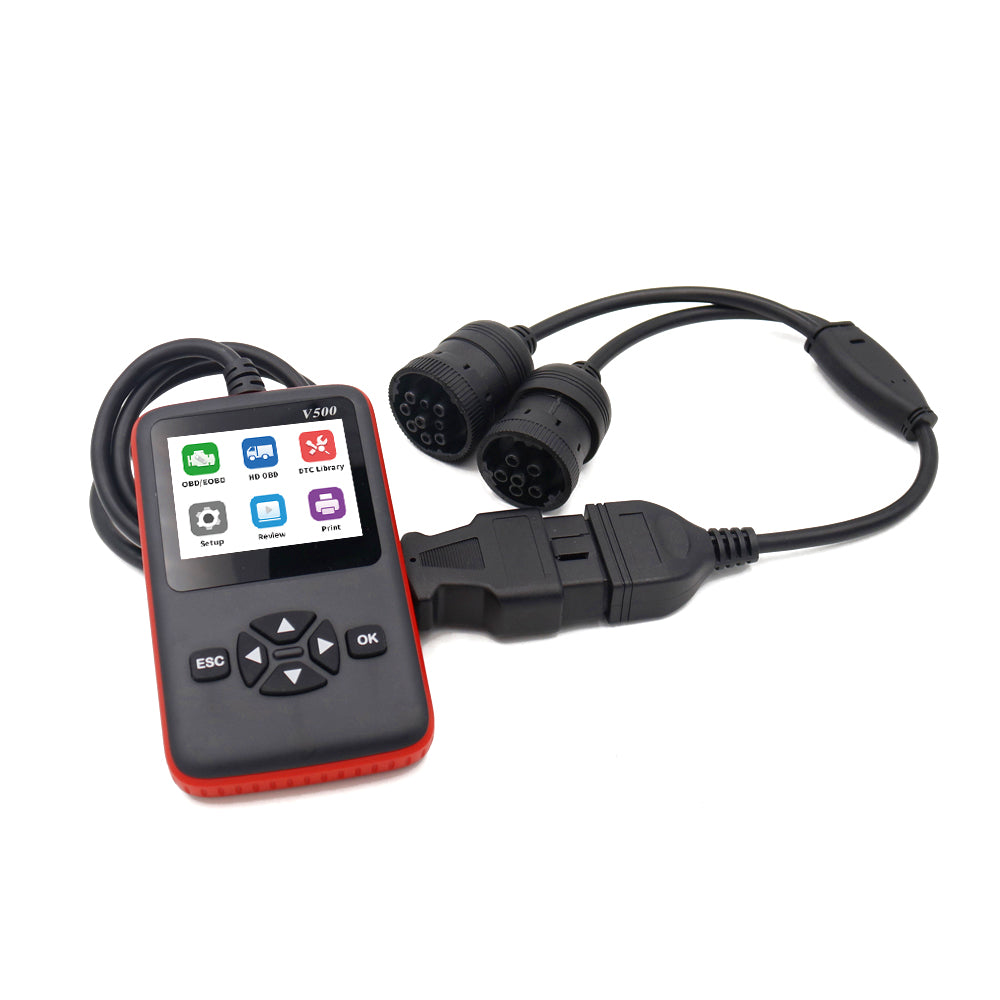

Compatible with 6-pin and 9-pin diesel adapter connections (adapter cable included)
Supports SAE J1939 and SAE J1708/J1587 truck protocols

Note: This device scans engine systems for passenger vehicles. It does not support Airbag, ABS, or other system-specific diagnostics on cars. Not compatible with electric vehicles or hybrids.

Specifications


Screen	2.8-inch colour LCD (240×320 resolution)
Working voltage	DC 9–36V
Working current	70–90mA
Operating temperature	−20°C to 65°C
Storage temperature	−30°C to 80°C

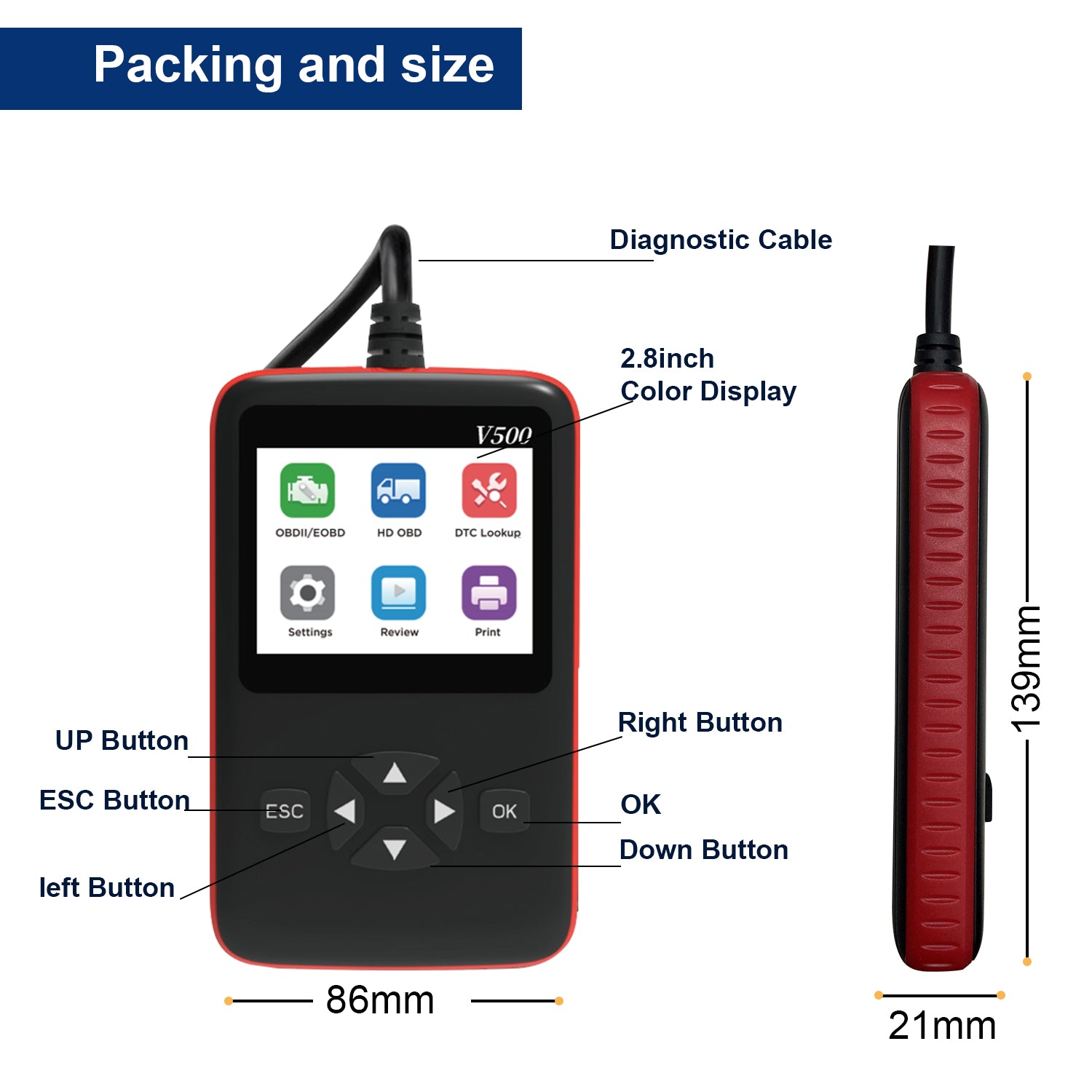

Dimensions	138.9 × 85 × 22mm

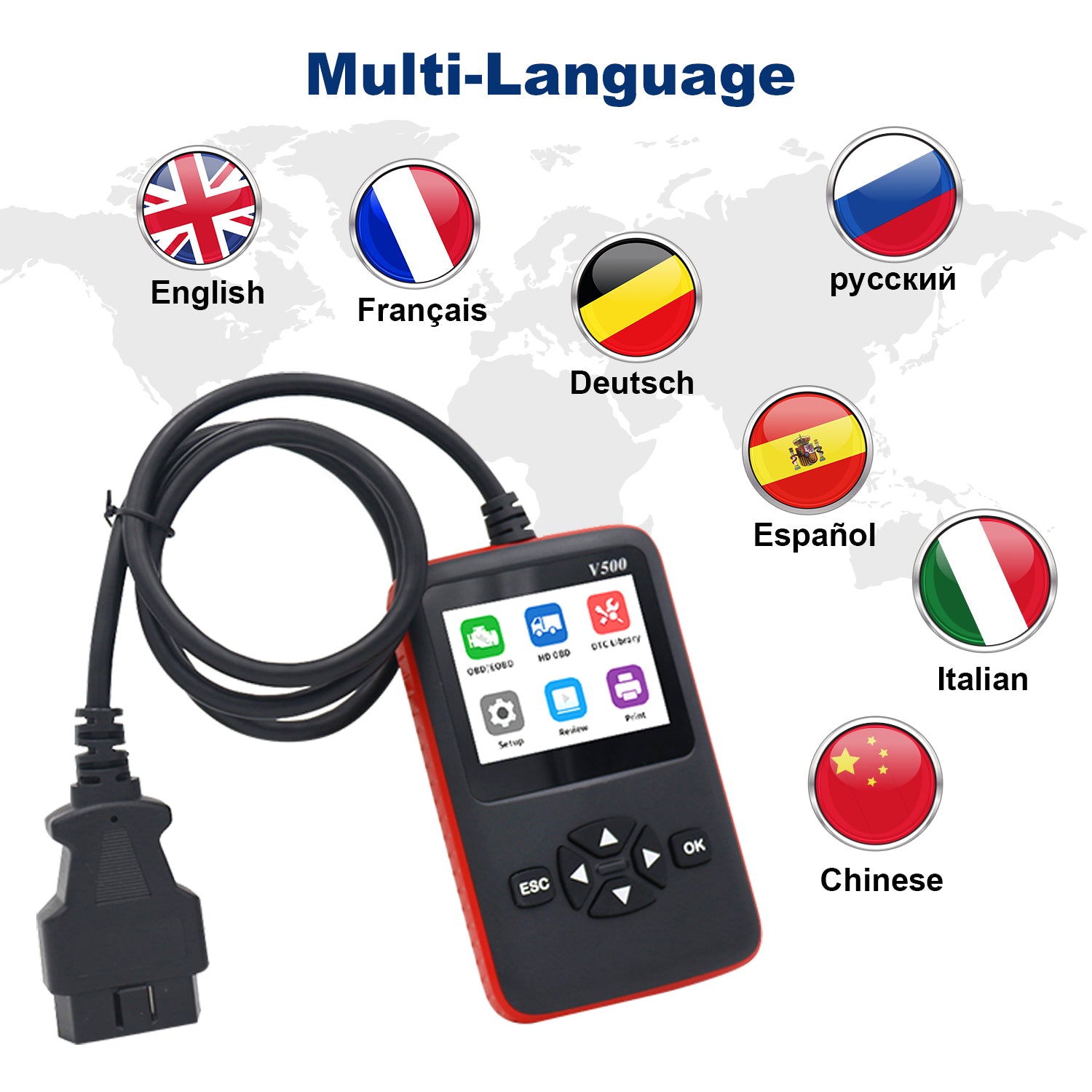

Languages	English, French, Spanish, Italian, Russian, German, Chinese

Supported Protocols
SAE J1850 PWM · SAE J1850 VPW · ISO 9141-2 · ISO 14230-4 KWP (5 baud) · ISO 14230-4 KWP (fast) · ISO 15765-4 CAN (11bit/500K) · ISO 15765-4 CAN (29bit/500K) · ISO 15765-4 CAN (11bit/250K) · ISO 15765-4 CAN (29bit/250K) · SAE J1939 · SAE J1708/J1587

Compatibility

Standard passenger cars and SUVs — most petrol and diesel vehicles manufactured after 2010
Diesel trucks and commercial vehicles supporting SAE J1939 or J1708 protocols
Not compatible with electric vehicles, hybrids, or vehicles without a standard OBD port

What's in the Box

1 × Diagnostic Scanner
1 × Truck Adapter Cable (6-pin and 9-pin compatible)
1 × User Manual
1 × Storage Bag
